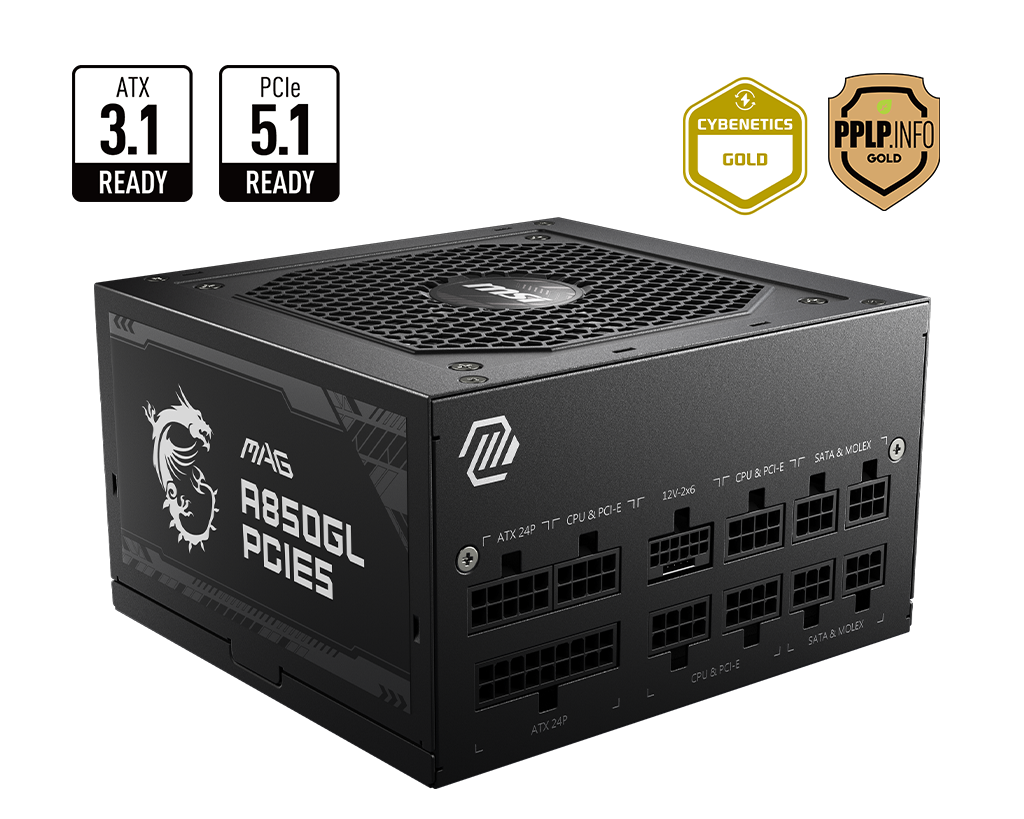

MAG A850GL PCIE5

Model Name
WEIGHT (CARD)
Efficiency
Fan Size
Modular
Dimension
Dimensions
PFC Type
Fan Bearing
Bearing Type
Connector
Rated Speed
Life Expectancy
Power Watt
Power Excursion
Air Flow
Input Voltage
Protection
Static Air Pressure
ATX (24 pin)
Input Frequency
EPS (4+4 pin)
PCI-E 5.0 (16 pin)
PCI-E (6+2 pin)
SATA (15 pin)
MOLEX (4 pin)
FDD (4 pin)

Model Name

TORX FAN 12CM

WEIGHT (CARD)

169g

Efficiency

80 PLUS Gold (up to 90%)

Fan Size

120 mm

Modular

Yes (full modular)

Dimension

140 x 150 x 86 mm

Dimensions

120mm x 120mm x 25.6mm

PFC Type

Active PFC

Fan Bearing

Fluid Dynamic Bearing

Bearing Type

Hydro-Dynamic Bearing

Connector

4-Pin PWM/DC

Rated Speed

500 - 1800 ±15% RPM

Life Expectancy

MTTF 150,000 Hours (25℃)

Power Watt

850W

Power Excursion

1700W (*up to 200% of the PSU's rated power for 100μs)

Air Flow

19.79 - 71.27 CFM

Input Voltage

100~240 VAC

Protection

OCP / OVP / OPP / OTP / SCP / UVP

Static Air Pressure

0.16 - 2.09 mm-H20

ATX (24 pin)

Input Frequency

47-63Hz

EPS (4+4 pin)

PCI-E 5.0 (16 pin)

1 (600W)

PCI-E (6+2 pin)

SATA (15 pin)

MOLEX (4 pin)

FDD (4 pin)
